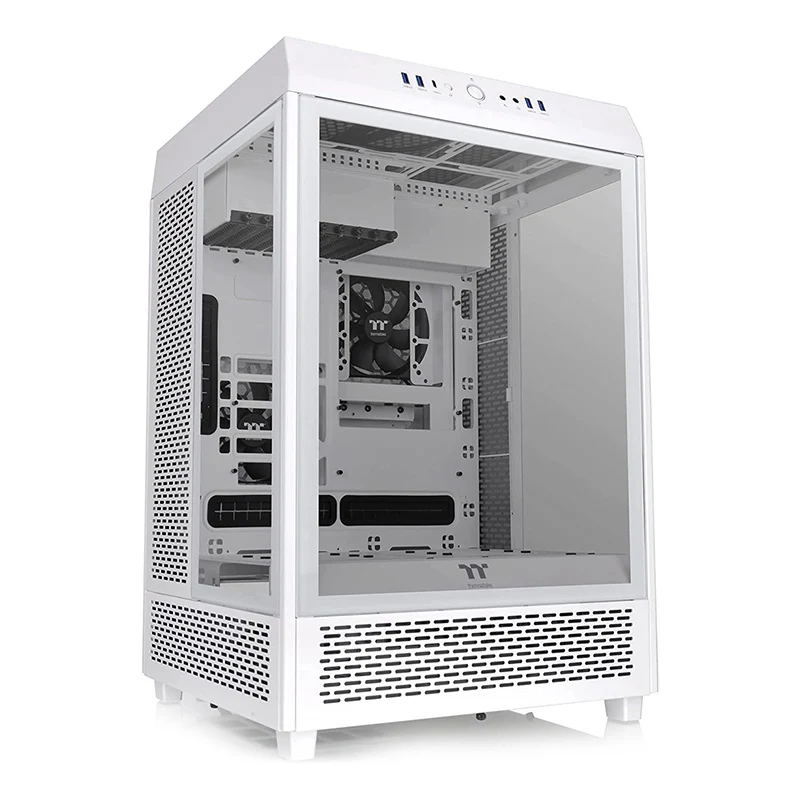

Thermaltake The Tower 500 Tempered Glass Case - White

Series

The Tower

Case Type

Mid Tower

Dimension (H X W X D)

608 x 388 x 398 mm

(23.9 x 15.3 x 15.3 inch)

Net Weight

14.8 kg / 32.6 lbs.

Side Panel

4mm Tempered Glass x 3

Colour

White

Material

SPCC

Cooling System

Rear(exhaust):

120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 2

Drive Bays

4 x 3.5, 8 x 2.5

or 8 x 3.5

Expansion Slots

9

Motherboards

6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX),

12 x 9.6 (ATX), 12 x 12 (E-ATX)

I/O Port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1

Fan Support

Top:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right Side:

3 x 120mm, 2 x 120mm, 1 x 120mm

Rear:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Power Cover:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Bottom(Vertical/Horizontal):

2 x 120mm, 1 x 120mm

Radiator Support

Top:

1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Right Side:

1 x 360mm or 1 x 360mm Custom LCS radiator (max length 399mm), 1 x 240mm, 1 x 120mm

Bottom(Vertical/Horizontal):

1 x 240mm, 1 x 120mm

Clearance

CPU cooler height limitation:

275mm

VGA length limitation:

325mm(With power cover)

355mm(Without power cover)

PSU length limitation:

200mm
