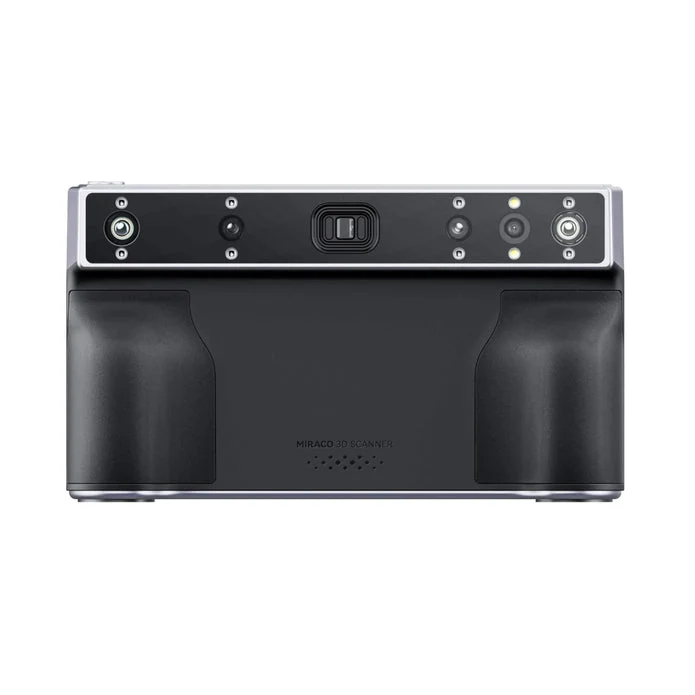

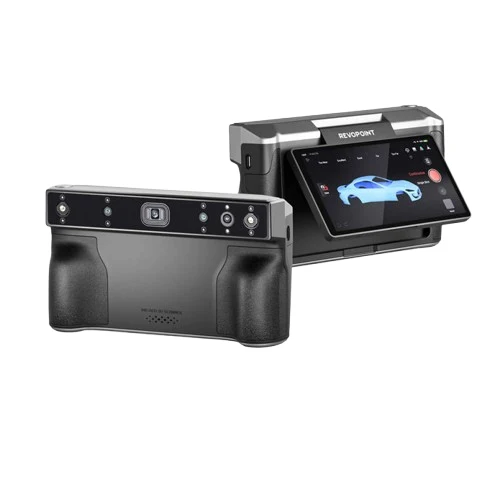

Revopoint MIRACO Plus 3D Scanner

The Revopoint MIRACO Plus is a high-accuracy, standalone 3D scanner designed for professional applications. It offers photogrammetric metrology capabilities, enabling precise measurements of large objects like automobiles, ship or plane parts, and machinery.

Key Features:

• High Precision: Achieve single-frame accuracy up to 0.04 mm and photogrammetric length accuracy of 0.02 mm + 0.05 mm/m, ensuring detailed and reliable scans.

• Fast Scanning Speed: Capture data efficiently with scanning speeds up to 20 frames per second, enhancing productivity.

• Versatile Scanning Modes: Utilize single-shot and continuous modes to adapt to various scanning scenarios, from intricate details to larger surfaces.

• Advanced Optical Zoom: Benefit from 1.5x and 2x infrared optical zoom to capture finer details and reduce noise in your scans.

• High-Resolution Color Capture: Create vibrant 3D models with the integrated 48-megapixel RGB camera, delivering eye-catching colour accuracy.

Specifications:

• Single-Frame Accuracy: Up to 0.04 mm
• Photogrammetric Length Accuracy: 0.02 mm + 0.05 mm/m
• Scanning Speed: Up to 20 FPS
• Optical Zoom: 1.5x and 2x infrared
• RGB Camera Resolution: 48 Megapixels

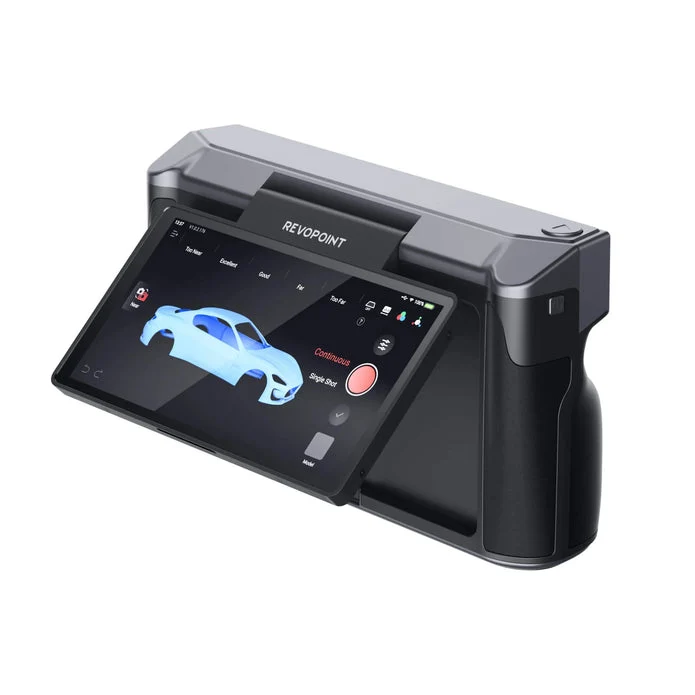

• Display: 6” 2K AMOLED touch screen with 180° flip capability
• Operating Modes: Single-shot and Continuous
• Weight: 750 g
• Dimensions: 200 x 50 x 110 mm
• Power Requirements: DC 7-11V, 5A; supports 65-watt fast charging
• Output File Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

The MIRACO Plus is ideal for professionals in the automotive, aerospace, manufacturing, and cultural preservation sectors, offering a comprehensive solution for detailed and accurate 3D scanning needs.
