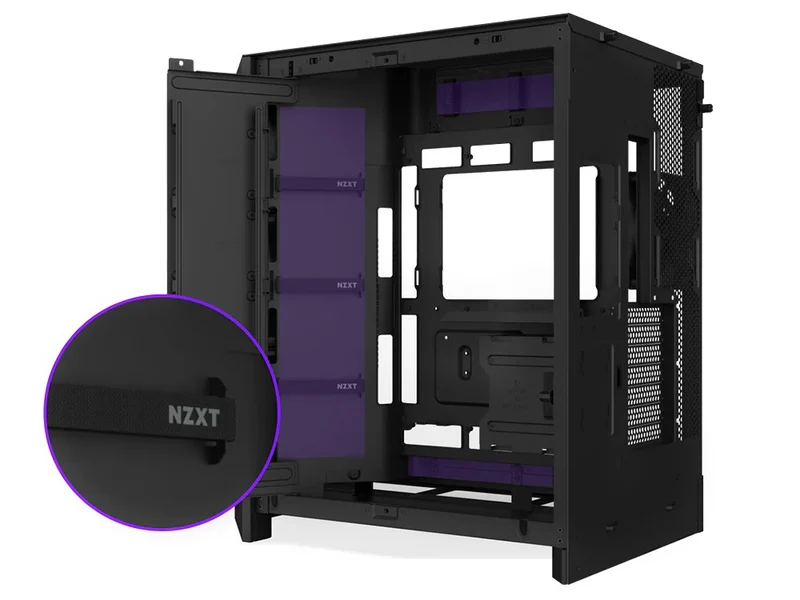

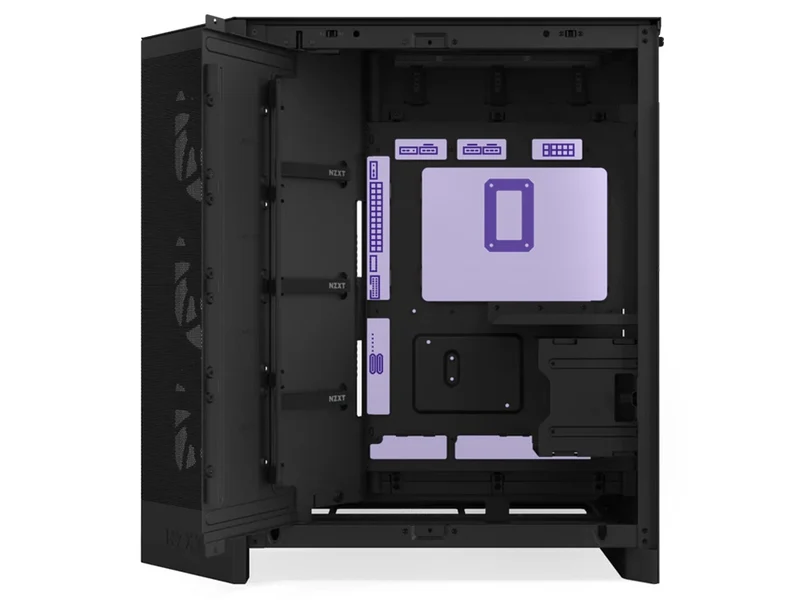

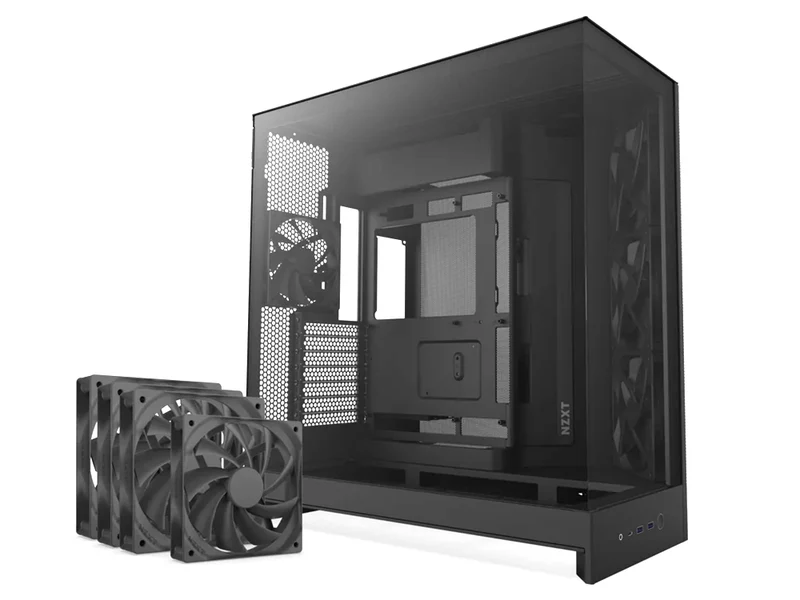

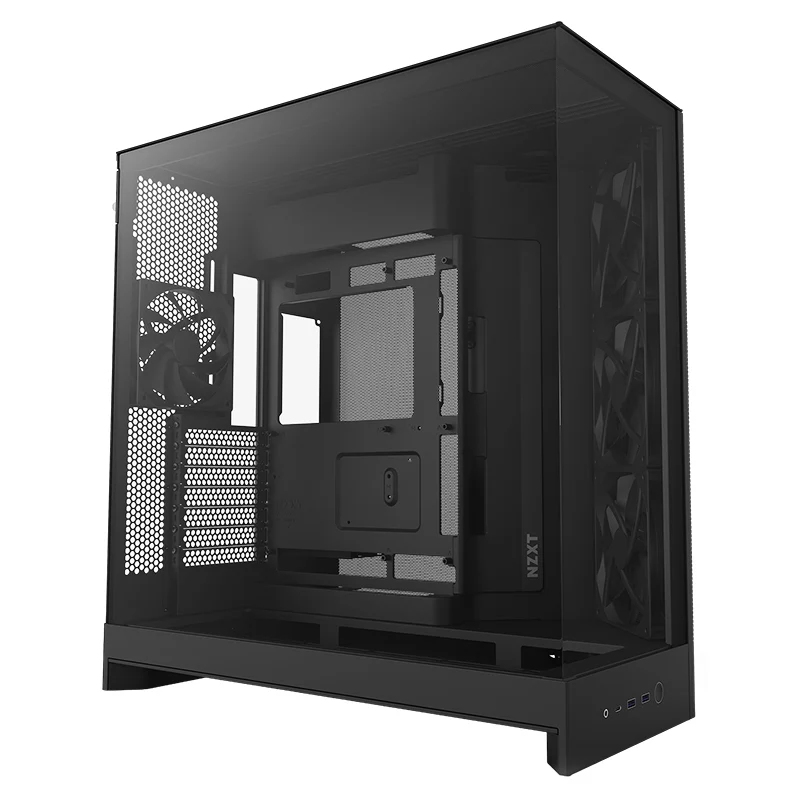

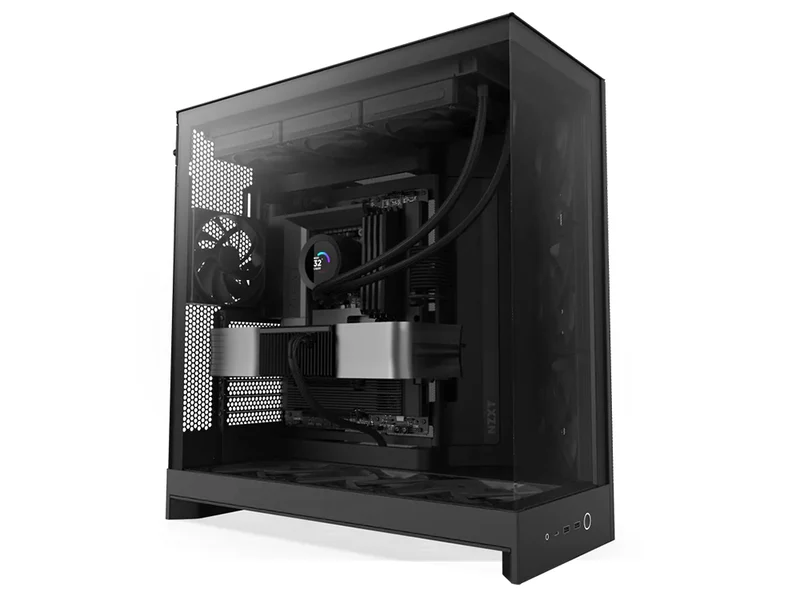

NZXT H9 Flow Mid-Tower ATX Case

DIMENSIONS

Height

506 mm (19.9 in)

Width

315 mm (12.4 in)

Depth

481 mm (18.9 in)

Volume

76.7 L

Weight

12.46 kg (27.47 lb)

GENERAL

Enclosure Type

Mid-tower

Motherboard Compatibility

E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX

Rear-Connecting Motherboard Support

(BTF, Project Zero)

Yes (ATX, Micro-ATX)

Materials

SGCC steel, tinted tempered glass

CLEARANCE

CPU Cooler Height

165 mm

GPU Length

Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)

PSU Length

200 mm

Top Radiator & Fan Thickness

Up to 80 mm (360 mm) Up to 62 mm (420 mm)

FRONT I/O PORTS

USB 3.2 Type-A

2

USB 3.2 Gen2x2 Type-C

1

Headset Jack

1

EXPANSION SLOTS

Standard

7

Vertical

0

DRIVE BAYS

2.5"

4+2

3.5"

2

FAN SUPPORT

Front-Right

3 x 120 mm / 3 x 140 mm (3 x F140Q (CV) included)

Top

3 x 120 mm / 3 x 140 mm

Bottom

3 x 120 mm / 3 x 140 mm

Rear

1 x 120 mm (1 x F120Q (CV) included)

RADIATOR SUPPORT

Front-Right

Up to 420 mm

Top

Up to 420 mm

Bottom

Up to 360 mm

Rear

Up to 120 mm

FAN SPECS - F140Q (CV)

Model

F140Q (CV)

Speed

1,350 ± 150 RPM

Airflow

100.25 CFM

Static Pressure

1.4 mmH2O

Noise

22.9 dBA

Fan Connector

3-pin

FAN SPECS - F120Q (CV)

Model

F120Q (CV)

Speed

1,350 ± 150 RPM

Airflow

60.2 CFM

Static Pressure

1.05 mmH2O

Noise

24.1 dBA

Fan Connector

3-pin

OTHERS

What's in the Box

H9 Flow x 1

Pre-installed F140Q (CV) x 3

Pre-installed F120Q (CV) x 1

Installation accessories x 1

User guide x 1
