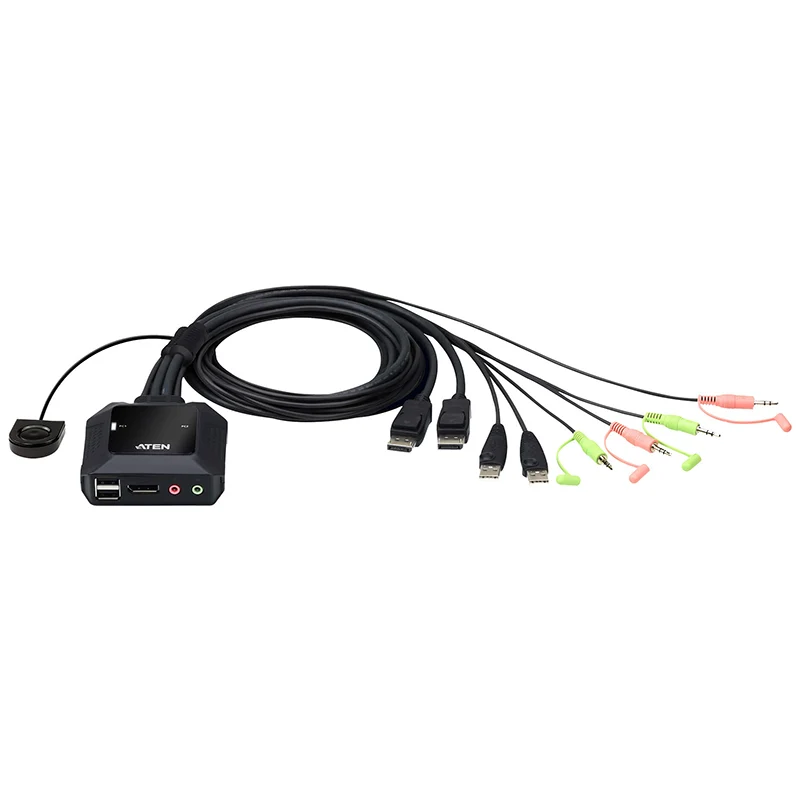

Aten 2 Port USB DisplayPort Cable KVM Switch with Remote Port Selector (CS22DP-AT)

CONNECTORS

Console Ports

1 x DisplayPort Female
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)

KVM (Computer) Ports

2 x DisplayPort Male
2 x USB Type A Male
2 x 3.5mm Audio Jack Male (Green)
2 x 3.5mm Audio Jack Male (Pink)

LEDS

KVM Port (On Line /Selected)

2 (White)

CABLE LENGTH

KVM

2 x 1.2 m

Remote Port Selector

1.8 m

EMULATION

Video

4096 x 2160 @ 30Hz

Power Consumption

DC5V:1.38W:28BTU/h

Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

ENVIRONMENTAL

Operating Temperature

0 - 50 °C

Storage Temperature

-20 - 60 °C

Humidity

0-80% RH, Non-condensing

PHYSICAL PROPERTIES

Housing

Plastic

Weight

0.35 kg ( 0.77 lb )

Dimensions (L x W x H)

8.34 x 8.42 x 3.04 cm
(3.28 x 3.31 x 1.2 in.)

Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
