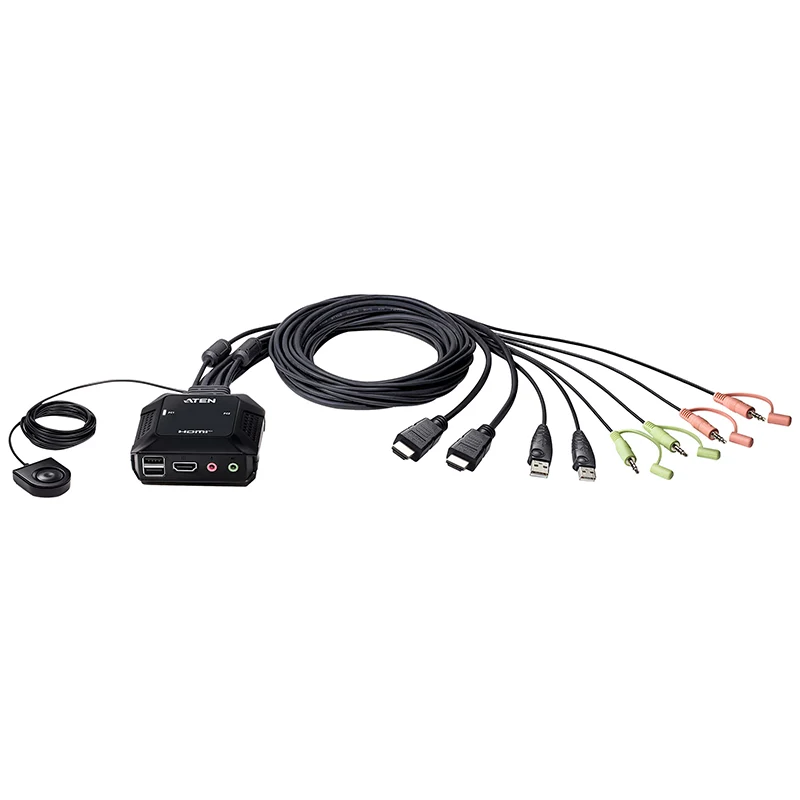

Aten 2 Port USB 4K HDMI Cable KVM Switch (CS22H-AT)

GENERAL

Computer Connections

2

Port Selection

Remote Port Selector

CONNECTORS

Console Ports

1 x HDMI Female
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)

KVM (Computer) Ports

2 x HDMI Male
2 x USB Type A Male
2 x 3.5mm Audio Jack Male (Green)
2 x 3.5mm Audio Jack Male (Pink)

Power (Optional)

1 x USB Micro Type B Female

LEDS

KVM Port (On Line/Selected)

2 (White)

Cable Length

KVM

2 x 1.2 m

Remote Port Selector

1.8 m

EMULATION

Keyboard / Mouse

N/A

Video

Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz

Power Consumption

DC5V:1.4W:19BTU/h

Note:
— The measurement in Watts indicates the typical power consumption of the device with no external loading.
— The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

ENVIRONMENTAL

Operating Temperature

0 - 50 °C

Storage Temperature

-20 - 60 °C

Humidity

0-80% RH, Non-condensing

PHYSICAL PROPERTIES

Housing

Plastic

Weight

0.34 kg ( 0.75 lb )

Dimensions (L x W x H)

8.34 x 8.42 x 3.04 cm
(3.28 x 3.31 x 1.2 in.)
